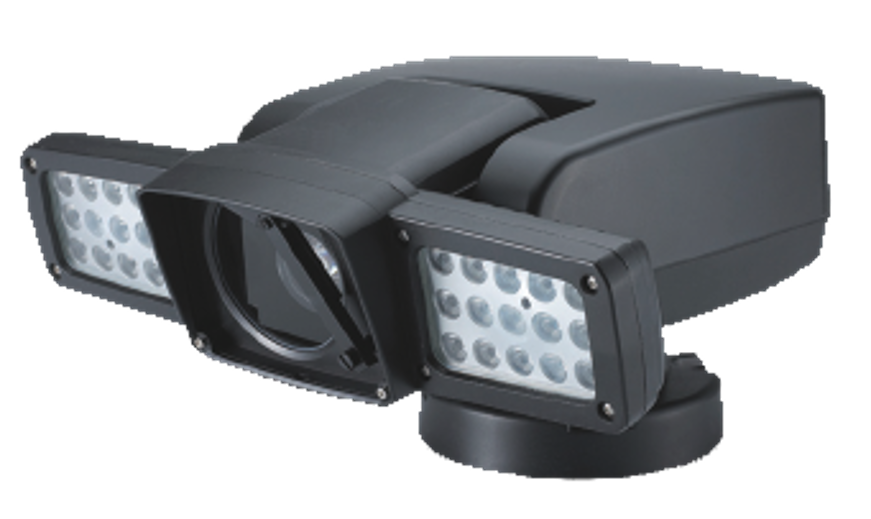

MN-1010

2.0MP x30 IP IR PTZ Camera
• 옥외용
• 1 /3” 2M Panasonic CMOS Sensor
• Network, HD-SDI, CVMS
• x30 Optical Zoom (4.3 ~ 129mm) & x32 Digital Zoom
• Day & Night (ICR)
• Real-time WDR
• DNR (디지털 노이즈 제거 기능 : 2D+3D)
• DIS (디지털영상 흔들림 보정기능)
• Privacy Mask (사생활 보호기능)
• HLC (역광보정 기능)
• Defog (안개 보정기능)
• 360° 연속 펜 회전, 총 180° 틸트 동작
• 255 Presets, 8 Tours, 8 Scans, 4 Patterns
2.0MP x30 IP IR PTZ Camera
 카메라

 Image Sensor

  1/3" Panasonic CMOS Sensor

 Total Pixels

  1956 (H) x 1266 (V) = 2.48M Pixels

 Active Pixels

  1944 (H) x 1092 (V) = 2.12M Pixels

 Video Format

  1080p@30/25fps, 720p@60/50fps, 720p@30/25fps
 Min Illumination
 Color

  0.5 lux / DSS 0.125 lux

 B/W

  0.1 lux / DSS 0.025 lux

 IR-LED

  0 lux

 S/N Ratio

  More than 50dB (AGC Off)

 Video Output

  Network, HD-SDI, CVBS
 Lens

 Lens Type

  X30 Day & Night Zoom Lens

 Zoom Ratio

  Optical x30 / Digital x32 Zoom

 Focal Length

  F = 4.3mm ~ 129.0mm

 Aperture Ratio

  F1.6 (wide) ~ F4.7 (tele)

 Angle of View (D, H, V)

  (WIDE) 71.3 ° / 58.9 ° / 45.3 °/ (TELE) 2.58 ° / 2.11 ° / 1.61 °
 Function

 Camera Title

  ID / Title / Zoom Ratio / System Message

 Day & Night

  Auto / Day / Night / Ext-in

 WDR / BLC

  Off / WDR / BLC / HLC

 ACE

  Off / Low / Middle / High

 DNR

  Auto / Off / Low / Middle / High

 Defog

  Off / On (Auto / Manual)
 Network

 Ethernet

  RJ-45 (10/100BASE-T)

 Video Compression

 H.265, H.264, MJPEG

 Resolution

 1920 x 1080, 1280 x 720, 1024 x 576, 640 x 360, D1, 4CIF, VGA, CIF, QVGA

 Bit rate

 32Kbps~8Mbps (CBR / VBR Support)

 Max Frame rate

 30fps@ 1920 x 1080

 Streaming Capacity

 Support up to Triple Streams

 Audio In / Out

 Mic In / Audio Out

 Audio Compression

 G.711

 Protocol

 TCP, UDP, IP, HTTP, DHCP, DNS, ICMP, ARP, IPv4 / IPv6, DDNS, NTP, SNMP, Syslog, UPnP, Bonjure, ZeroConf,
 RTP/RTSP, Onvif, Genetec Protocol

 Storage

 SDXC (up to 64GB, Micro SD)

 Security

 MD5 Password / iptables (firewall) / SSL

 Webpage Language

 Korean, English

 Web Viewer

 IE8.0 or above, Edge, Firefox, Chrome, Safari
 General

 Power Source

 DC24V ~ DC32V

 Power Consumption

 DC24V, 8A

 Operating Temperature

 -20℃ ~ 50℃ / 0% ~ 90% RH

 Ingress Protection

 IP66

 Material

 Aluminum

 Dimensions

 392(W) x 211(H) x 389.5(D) mm

 Weight

 12Kg
